VersaWeld
D&D TechnologiesGate Applications | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
Gate Type | Non Self-Closing |
Gate Material | Steel/Ornamental Iron |
Self-Closing Gate Weight | |
Approx. Gate Size | 6ft W x 8ft H (1.5m x 2m) |
Gate Frame/Post Shape | Square-to-Square, Square-to-Round, Round-to-Round, Round-to-Square |
Min Post Size | 1½"+ (38mm) |
Ideal Gate Gap | Fixed at 2¾" (70mm) |
Fixing Method | Weld-On |
Color/Finish | Zinc |

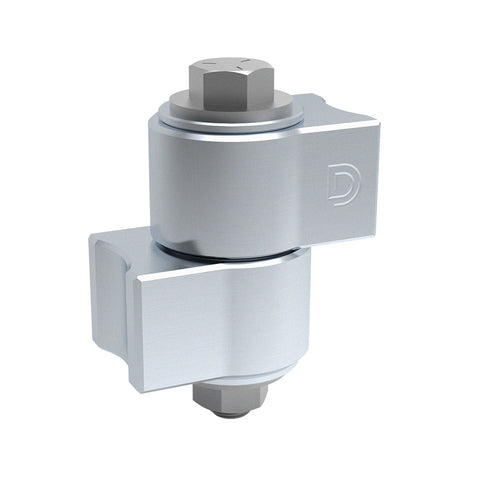

The BadAss VersaWeld – a simple hinge that welds on nearly any gate right out of the box. CNC machined to the tightest tolerances in the industry. Due to SHUT IT’s unique bushing design The ORIGINAL, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.

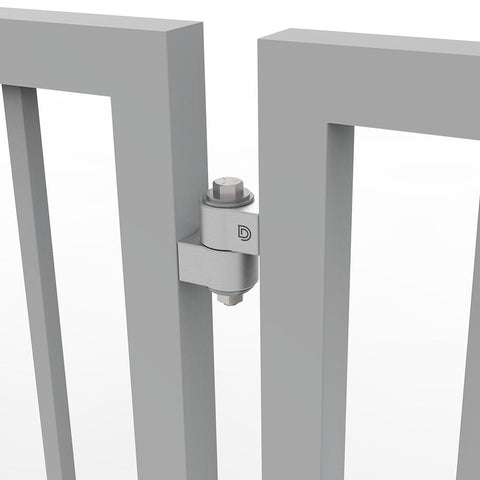

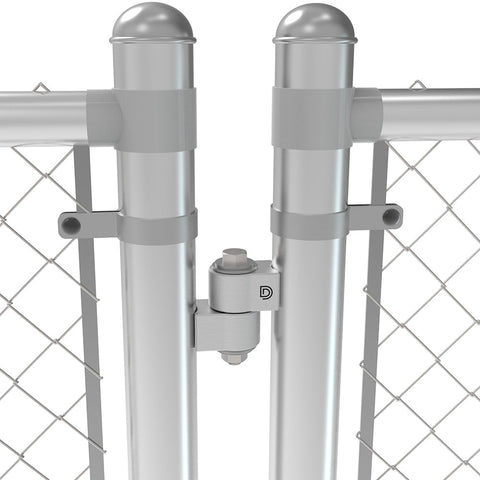

One simple hinge that welds on nearly any gate right out of the box• Fits either flat or round posts or gates no adaptors needed
• High-temp bearings, safe to powder-coatwith hinges installed on gate
• Smoother than traditional block or barrel hinges
• 2 sealed ball bearings
• No greasing or maintenance required on sealed bearings. EVER!
• Precision bushing distributes gate load for optimal performance and hinge longevity
Load rating per gate:2,000 lb (900kg)
Maximum gate weight:1,000 lb (450kg)
