The HD BadAss Hinge
D&D TechnologiesOptions
Select Title
$123.88
This item is unavailable for direct purchase. Please add it to your quote request and we will follow up with purchasing details.
Additional Specifications
Gate Applications | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
Gate Type | Non Self-Closing |
Gate Material | Steel/Ornamental Iron |
Self-Closing Gate Weight | |
Approx. Gate Size | 6ft W x 8ft H (1.5m x 2m) |
Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
Min Post Size | 1½"+ (38mm) |
Ideal Gate Gap | 2½ - 3" (61-74mm) |
Fixing Method | Weld-On |
Color/Finish | Zinc |
SKU: CI3500
ISBN:

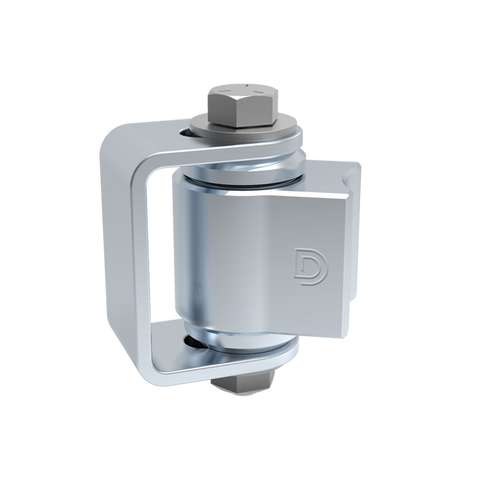

The Heavy-Duty BadAss Hinge is one mighty dude! Designed for the rarest of installations where even The ORIGINAL is not BAD enough. For these situations, SHUT IT has designed the HD to hold 50 percent more load than the ORIGINAL. As with all our BadAss hinges, the HD is CNC machined to the industry’s tightest tolerances.
• High-temperature sealed bearings – safe to powder coat with hinges installed on gate
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability for perfect installations
• Holds 50% more load than the ‘Original’
• Load rating per gate:3,000 lb (1,360kg)
• Maximum gate weight:1,500 lb (680kg)
