The BadAss Uphill Hinge Set
The BadAss Uphill Hinge Set
The BadAss Uphill Hinge Set

The BadAss Uphill Hinge Set

D&D Technologies
$345.91
Tooltip Example
This item is unavailable for direct purchase. Please add it to your quote request and we will follow up with purchasing details.
SKU: CI3975 ISBN:

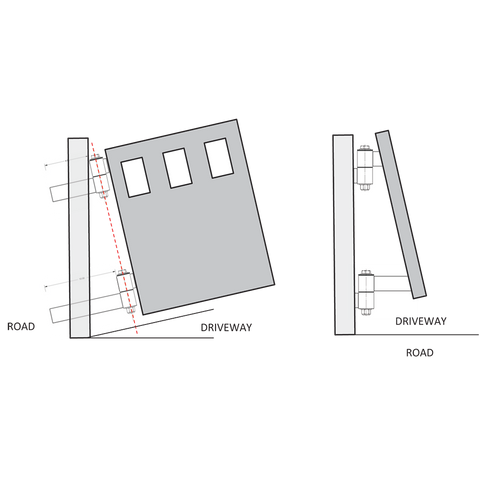

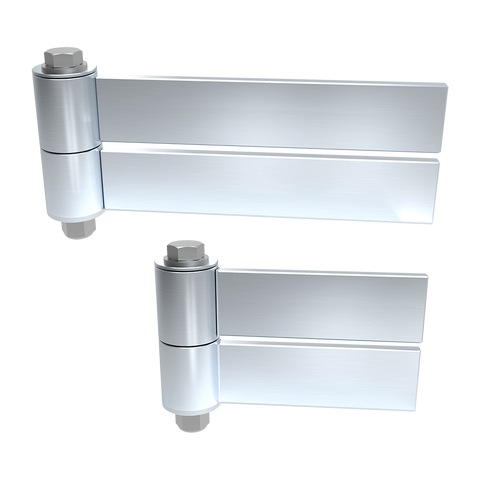

One of SHUT IT Gate Hardware’s newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10” (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.

• High-temperature sealed bearings – safe to powder coat with hinges installed on gate
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability for perfect installations
• Suitable for motorised, uphill or heavy gates
• For square-posted, weld-on installations
• Zinc electroplated external components
• Swings 180º, fixed gap variance 1/2" (13mm)
• Leaf straps can be cut to length
• Load rating per gate: 3,000 lb (1,360kg)
• Maximum gate weight: 1,500 lb (680kg)
