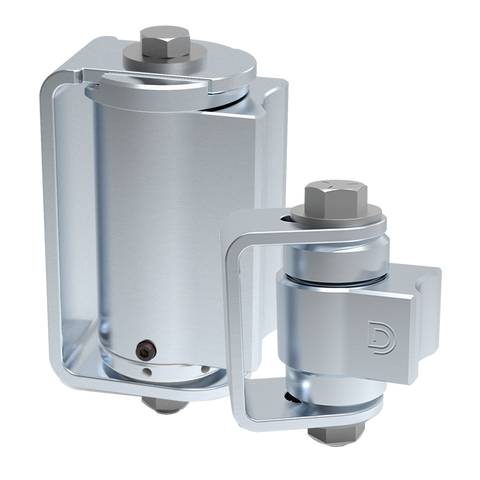

The Self-Closing BadAss Hinge Set
D&D TechnologiesOptions
Select Title
$284.28
This item is unavailable for direct purchase. Please add it to your quote request and we will follow up with purchasing details.
Additional Specifications
Gate Applications | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
Gate Type | Self-Closing |
Gate Material | Steel/Ornamental Iron |
Self-Closing Gate Weight | Up to 300lb (130kg) |
Approx. Gate Size | 6ft W x 8ft H (1.5m x 2m) |
Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
Min Post Size | 1½"+ (38mm) |
Ideal Gate Gap | 2½ - 3" (61-74mm) |
Fixing Method | Weld-On |
Color/Finish | Zinc |
SKU: CI3850
ISBN:
With the BadAss Self-Closing Hinge you no longer need a separate closer for jobs that require a self-closing gate. The closer is built into the hinge! Get the benefits of the best heavy duty gate hinge and a reliable closer in one package. Save hundreds on poorly designed gate closers and hydraulic door closers that are adapted to gate systems.
• 1 Self-closing hinge + Original BadAss hinge
• Easy to install, heavy duty self-closing hinge
• 5 tension-adjustment settings (inc bracket)
• Gate swings from -5º to 110º
• Load rating per gate:2,000 lb (500kg)
• Self-closing maximum gate weight: 300 lb (130kg)
• Suitable for ADA use
