SKU: SUR210Z
ISBN: 707392375906

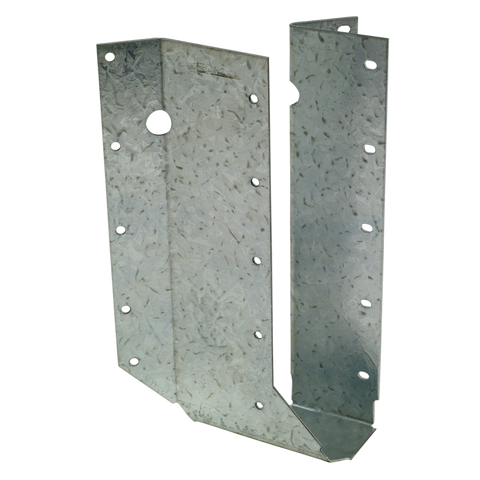

The SUR/L are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.
Key Features
SUR = skewed right
Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
Nominal joist size: 2x10 or 2x12
Made from 16-gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
