KBSZ™ Knee Brace Stabilizer (Pack of 40)
Simpson Strong-Tie®Options
Select Title
$145.80
This item is unavailable for direct purchase. Please add it to your quote request and we will follow up with purchasing details.
Additional Specifications
Gate Applications | |
Gate Type | |
Gate Material | |
Self-Closing Gate Weight | |
Approx. Gate Size | |
Gate Frame/Post Shape | |
Min Post Size | |
Ideal Gate Gap | |
Fixing Method | |
Color/Finish |
SKU: KBS1Z
ISBN: 10707392384011

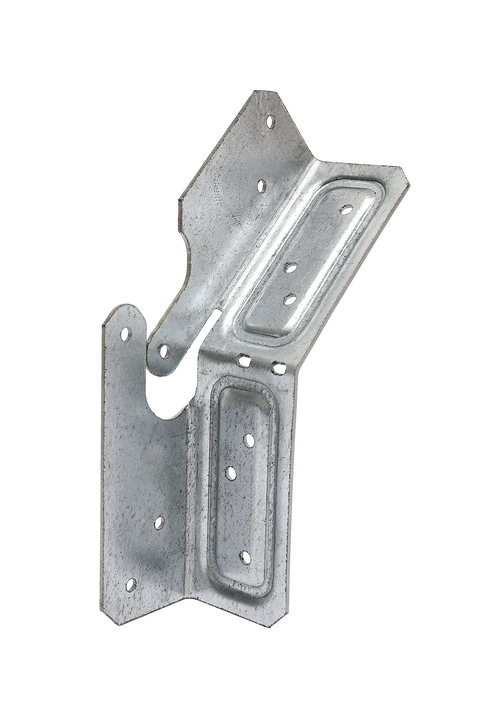

The KBS1Z knee brace stabilizer makes a structural connection between knee bracing and columns or beams to help stabilize freestanding structures and comply with many prescriptive deck bracing requirements such as AWC’s DCA6 Prescriptive Residential Wood Deck Construction Guide. Factory-formed at a 45° angle and easily installed with nails, the KBS1Z braces 2x, 4x and 6x in line post-to-beam configurations. Check with your local building department for deck bracing requirements.
- For installations at an angle other than 45°, bend KBS1Z along slots to desired angle; bend one time only
- For equal-width members, install (2) KBS1Z on each end of brace
- For 2x knee brace, install single KBS1Z on each end of brace
- Beam-to-post: Install in pairs
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
