Additional Specifications
Gate Applications
Gate Type
Gate Material
Self-Closing Gate Weight
Approx. Gate Size
Gate Frame/Post Shape
Min Post Size
Ideal Gate Gap
Fixing Method
Color/Finish
SKU: LRU26Z
ISBN: 707392266242

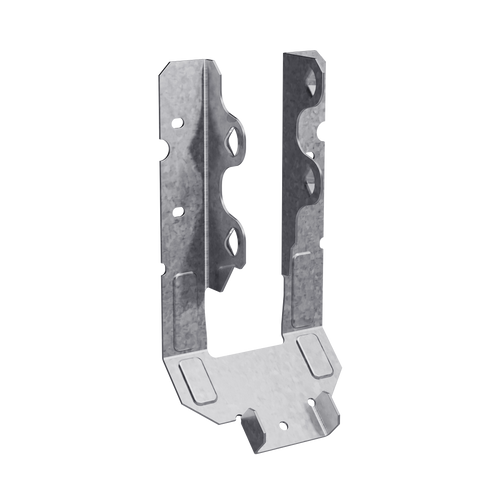

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
Key Features
The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Accommodates roof pitches from 0:12 to 14:12
Slopes up or down to 45° (12:12) — for slopes greater than 45° up to 49° (14:12), allowable loads are 0.85 of table loads
For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
For nominal rafter sizes: 2x6, 2x8
Seat width: 1-9/16 in.
Made from 18-gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
