SKU: 8325-S12P
ISBN:
Our Double Straps with Rear Eye Sets packages together 2 of our Rear Eye Double Straps (top and bottom hinges with 3” or 3-1/2” space between straps) and 2 matching plates with adjustable pins. They provide for a strong installation, full lateral adjustment and as little as a 1/2” between the gate and the post. Ideal for double driveway entrance dates, rail gates, dumpster enclosure gates.
Key Features
Extremely heavy duty!
Intended for use on large, heavy gates constructed using wood or cellular PVC

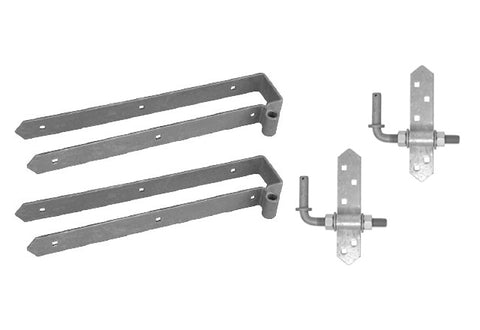

Each set includes two of either our 12”, 18” or 24” Rear Eye Double Straps and two mounting plates with 6” adjustable pins.
Available in 12”, 18” or 24” lengths.
Straps are 2” wide x 1/4” thick.
3” or 3-1/2” space between straps.
Manufactured from forged steel.
Available in Hot Dipped Galvanized or Black (BPPCG) finishes.
Color matched carriage bolts included for straps only.
Installation Specs

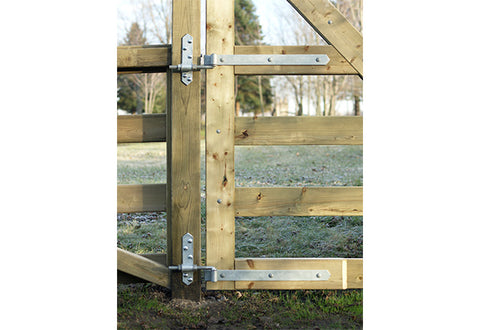

Ideally used for heavy gates such rail gates, driveway entrance gates, dumpster enclosure gates, agricultural gates and the traditional English ‘Five Bar Gate’.

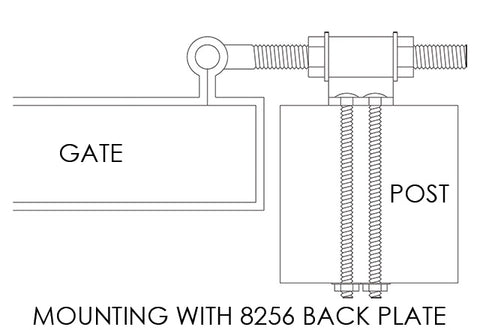

As little as a 1/2” space is required between the gate and post.
Double strap hinges sandwich the gate between the straps, virtually locking the corner square at 90 degrees. This helps to prevent the gate from sagging.
