SKU: 5000-12SP
ISBN:

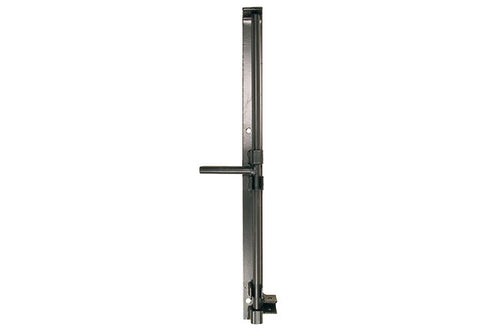

Our heavy duty Lockable Cane Bolts are made with 5/8” dia. rod and available in 3 different lengths. Its single-piece, slide bolt design makes it an excellent option for heavier gate installations as it can be easily through bolted for greater durability. Cane Bolts are also supplied with a padlock-able bracket so you can lock your gates, if desired.
Key Features

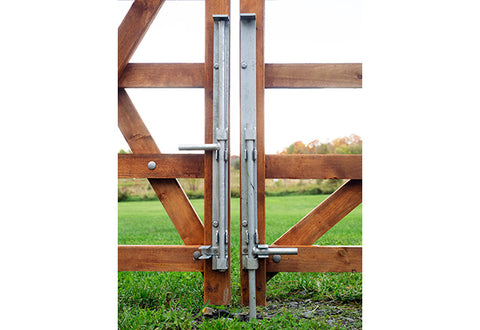

Intended to secure double gate and door applications.
Bolts are 5/8” dia. rod.
Available in 12”, 15” and 24” lengths.
Sold individually.
Manufactured from steel.
Available in Hot Dipped Galvanized or Black (BPPCG) finishes.
Color matched fasteners included.

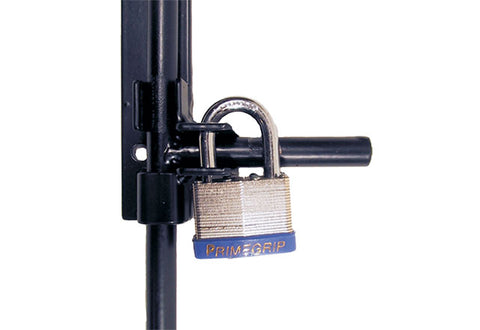

Can be locked with the addition of a padlock (not included).
Installation Specs
12” model has a 4” drop, 15” model has a 6” drop and the 24” model has a 10” drop.

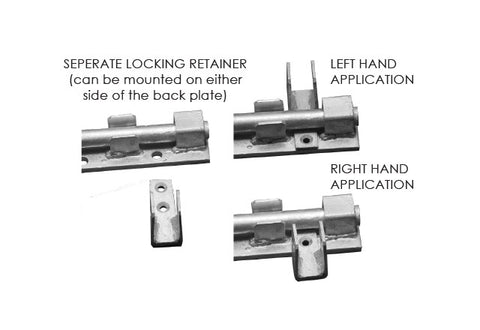

Includes a separate locking retainer which allows for easy left or right handed installation.

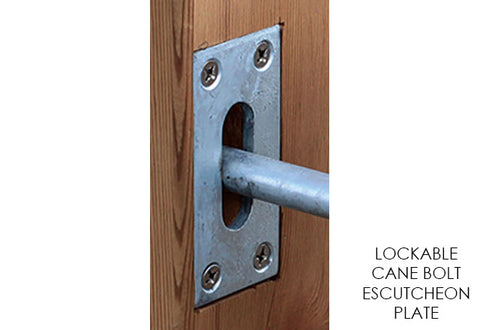

Optional escutcheon plate available for horizontal latch use or door jamb applications.

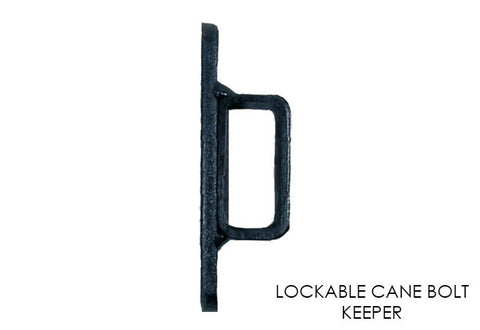

Optional Latch Keeper available if you would like to use this as a horizontal latch.
